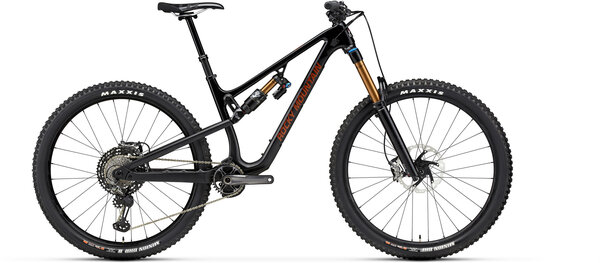

The Altitude will be our key platform for enduro racing and aggressive trail riding. Ridden by the Rocky Mountain Race Face Enduro Team, this bike is fast. Already race proven with Jesse's win at the EWS in Zermatt, the redesigned Altitude is now more capable than ever.
The goal with the redesign was to create a bike that would be competitive on today's racetracks while still being a ton of fun for those getting out on weekends. We might not all smash racetracks and stand on podiums like Jesse Melamed, but we can all relate to the feeling of committing to ride a little faster or hitting that feature you usually skip over. The Altitude has everything that you need to take your riding to the next level.
Looking at the needs of shorter riders vs. taller riders, we've introduced a wheel size split on our medium Altitude frame. The Altitude is designed high speed descending and aggressive riding, which is why we've offered four frame sizes including both sizes small and medium with 27.5" wheels.
- All new frame, ground-up design
- The platform of choice for the Rocky Mountain / Race Face Enduro Team
- Team Replica Spec: ride ALN, Jesse & Remy's bike!
- Ready to race, out of the box
- Support the sponsors that support the racers
- New Fox 38: the biggest, baddest EWS winning fork
- Fox Float X2 shock for ultimate downhill performance
- 203mm rotors for stopping power
- XTR Crankset
- Race Face Turbine R wheels, team spec: repairable rims mid-race if damaged
- Ergon grips to reduce rider fatigue
- All new Race Face Turbine R dropper, user serviceable, lower stack & insertion
Sizes Small – Medium: 27.5-inch
Sizes Medium – X-Large: 29-inch
Size Specific tune
Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real-world field testing and adjusts each tune for specific frame sizes.
FORM tubesets utilize premium materials to meet our strict requirements. Each FORM tube that we create is engineered for its specific purpose within the frame, ensuring optimized strength, weight, and ride quality.
RIDE-9 adjustment system
The RIDE-9 adjustment system allows riders to quickly fine-tune their geometry and suspension with a pair of Allen keys. Nine configurations are possible thanks to two interlocking chips.
Adjust your RIDE-9 position for geometry before considering suspension effects, or variables like air pressure and shock compression. Make gradual, incremental changes, take notes, and be methodical. Don't adjust in a hurry before a big ride. Take your time and enjoy the process.
Smoothlink suspension is efficient yet supple when you're on the pedals and across a wide range of gears. It features a controlled end-stroke and a rate-curve that feels more capable than the travel would suggest. This four-bar suspension design philosophy is centered on ride characteristics; each bike platform we develop balances variables like anti-squat, axle path, chain growth, rate curve, anti-rise, etc. to achieve the legendary Rocky Mountain ride feel.
Smoothwall carbon uses one of the world's most sophisticated carbon processes to deliver industry-leading stiffness-to-weight, ride quality, and durability. We eliminate excess resin and fibers by using rigid internal molds instead of traditional air bladders. We then utilize different types of carbon in specific frame areas to maximize stiffness and impact resistance while minimizing overall weight.
|Frame||SMOOTHWALL Carbon. Full Sealed Cartridge Bearings. Press Fit BB92. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9 Adjustable Geometry. 2 Position Axle. 160mm Travel. SMOOTHWALL Carbon Rear Triangle|
|Fork||Fox 38 Float EVOL GRIP2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset|
|Headset||FSA Orbit NO.57E | 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race|
|Rear Shock||Fox Float X2 Factory | Sealed Bearing Eyelet | 25x8mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ|
|Rims/Wheels||Race Face Turbine R Wheelset | Tubeless Ready - Tape | Valves Incl | 28H|
Front: Race Face Vault Boost 15mm
Rear: Race Face Vault Boost 148mm | RMB Axle | 163mm x 12mm x 1.5mm
Front: Maxxis Minion DHF 2.5 WT 3C MaxxGrip DD Tubeless Ready
Rear: Maxxis Minion DHR II 2.4 WT 3C MaxxGrip DD Tubeless Ready
|Crankset||Shimano XTR | 27.5 = 34T | 29 = 32T | 24mm Spindle | 170mm Crank Length|
|Chainrings||27.5 = 34T | 29 = 32T|
|Bottom Bracket||Shimano SM-BB71|
|Chain||Shimano XTR 12s|
|Rear Derailleur||Shimano XTR|
|Cassette/Rear Cogs||Shimano XTR 12s 10-51T|
|Handlebars||Race Face Next R | 780mm Width | 20mm Rise | 8° Backsweep | 4° Upsweep | 35mm Clamp|
|Tape/Grips||Ergon GD1 EVO Lock On|
|Stem||Race Face Turbine R | 0° Rise | All Sizes = 40mm|
|Brakes||Shimano XTR Trail 4 Piston | Finned Metal Pads | RT86 203mm F Rotor | RT86 180mm R Rotor|
|Saddle||WTB Volt Race | Cromoly Rails | 142mm Width|
|Seat Post||Race Face Turbine R (by Fox) Dropper 30.9mm | SM = 125mm | MD = 150mm | LG - XL = 175mm|
* Subject to change without notice.
|Black/Brown / Medium / 29-inch||770416305319||B0118MD92||210000042123|
