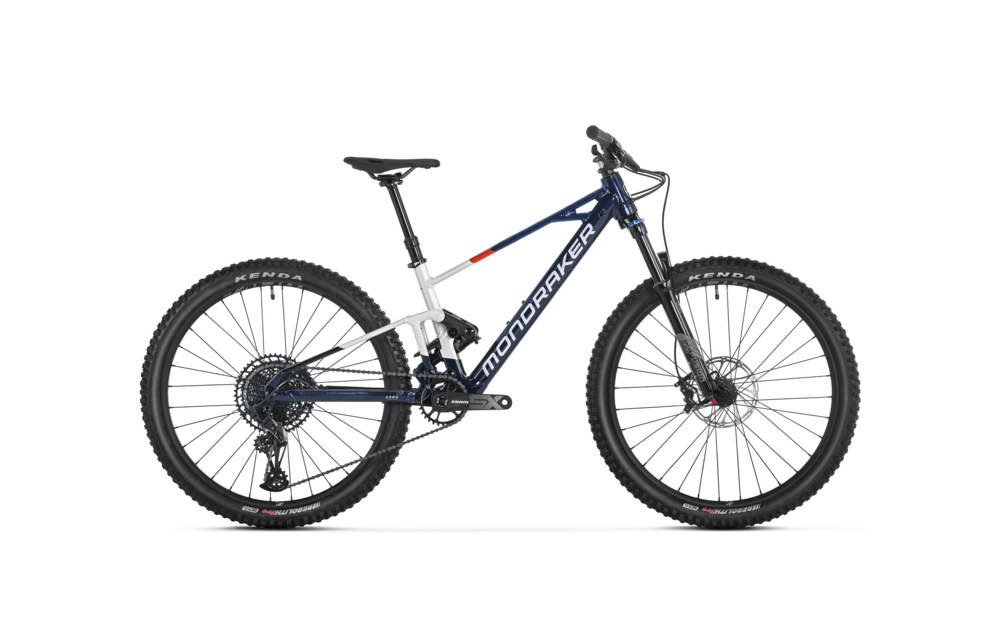

Mondraker F-Trick 26

Mondraker F-Trick 26
$2,499.00
Color: Midnight Blue
Size: 26-inch
Wheel Size: 26-inch
Please select options Unavailable

Details

The all-new F-Trick full suspension range, has so many things in common with the high-end adult bikes that we’re hard pressed to call it a kids bike. Forward Geometry, the Updated Zero Suspension System, 120mm and 130mm travel, dropper posts, 12x148mm drop-outs, 30mm stems, 4 piston brakes and 2.4” tyres. It’s enough to leave you out of breath. Picking up the baton from the old Factor range, the F-Trick comes in 24” and 26” flavours. As such the F-Trick 24” is perfect for kids from 8 to 11 years old (135-155cm) and the F-Trick 26” suits anyone from 10 to 14 years old (145-165cm).

Sizes:
Frame sizeOne Size
Seattube length350 mm
Toptube length550 mm
Bottom bracket drop-10 mm
Bottom bracket height285 mm
Chainstay length420 mm
Seat tube angle71º
Effective seattube angle76º
Headtube angle65,5º
Fork Offset41 mm
Wheelbase1050 mm
Headtube length90 mm
Reach377 mm
Stack553 mm

Specs

Pedals SDG Slater JR
Fork X-Fusion Velvet RL 26, 140mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Hubs Front Hub: DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
Rear Hub: DA207R 12x148mm, cup & cone ball bearings, IS 6 bolts, HG freehub
Rims MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes
Stem Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Chain Sram SX Eagle, 12s, Powerlock
Frame F-Trick 26 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, one piece bolt-on upper link, 12x148mm rear axle, 73mm BSA bottom bracket, HHG internal cable routing, dedicated 1x drivetrain design.
Tires Front Tire: Kenda Regolith 26x2.4 120TPI, folding TLR
Rear Tire: Kenda Regolith 26x2.4 120TPI, folding TLR
Brakes Front Brake: Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake: Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Saddle SDG Fly JR
Spokes CN round stainless steel
Headset Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Crankset SRAM SX Eagle, DUB axle, Direct mount chain ring, 155mm
Seatpost Onoff Pija dropper internal, diameter 31.6mm, 405x95-125mm
Shifters SRAM Trigger SX Eagle, 12s, X-Actuation 1:1
Chainrings 30T, steel, X-Sync
Handlebars MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Rear Shock X-Fusion 02PRO R, 165x45mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings
Tape/Grips Grips: Onoff Twin, 1lock-on
Brake Levers Sram G2 R, tool-free reach adjust, lever pivot bushings
Bottom Bracket SRAM DUB BSA, sealed bearings, 73mm
Rear Derailleur Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Cassette/Freewheel Sram PG-1230, 11-50T, 12s

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Midnight Blue / 26-inch / 26-inch 8435392888424 010.24US230 210000051126
