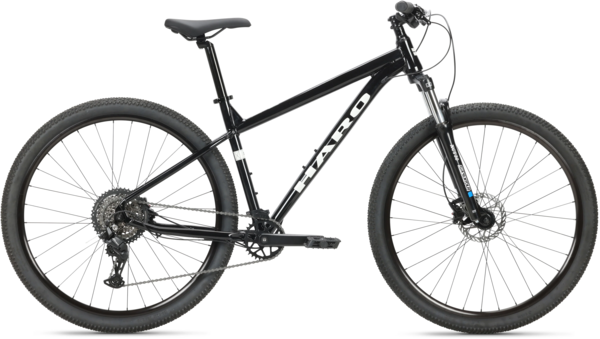

Haro Flightline 1 29

Haro Flightline 1 29
  • Color: Gloss Black
  • Color: Matte Green
$799.99
Color:
Size: Small
Wheel Size: 29-inch
Please select options Unavailable

Details

Updated and up-sized, the Flightline 1 hardtail 29er features a revamped alloy frame with internal cable routing and a tapered head tube matched with a SunTour XCE28 100mm suspension fork. High-performance spec like a Shimano 8-speed Essa drivetrain and hydraulic disc brakes with 160mm rotors, matched with durable double-wall alloy rims put this bike at the front of the lineup for an affordable, ride-able MTB. Compatible with an aftermarket dropper post with internal cable routing, it can be fine-tuned to your personal preferences. Enjoy the ride!

Geometry Chart:
SIZESMLXL
A. Top Tube (Effective) 406mm 457mm 508mm 559mm
B. Seat Tube (C-T) 595mm 610mm 635mm 645mm
C. Standover Height 69° 69° 69° 69°
D. Head Tube Length 72.5° 72.5° 72.5° 72.5°
E. Head Angle 450mm 450mm 450mm 450mm
F. Seat Angle 64mm 64mm 64mm 64mm
G. Wheelbase 1105.98mm 1136mm 1146.64mm 1157.3mm
H. Chainstay 100mm 100mm 110mm 120mm
I. BB Drop 721mm 740mm 773.7mm 799mm
J. Stem Length
K. Bar Width 394mm 425mm 435mm
L. Crank Length 515mm 515mm 515mm 515mm
M. Wheel Size 44mm 44mm 44mm 44mm

Specs

Frame New Haro Flightline 6061-T6 Aluminum, with internal cable routing and tapered steerer tube.
Fork SR Suntour XCE28 100mm Suspension Fork
Wheels Double Wall I25
Hubs Alloy quick release
Tires Excell E610 29x2.1"
Bottom Bracket Sealed Cartridge 73mm
Crankset Prowheel 3pc, square tapered Alloy crank arm with stamped 32T chainring
Shifters Shimano Essa 8spd Rapidfire with optical window
Rear Derailleur Shimano Essa 8spd
Cassette/Freewheel Shimano Essa 8spd 11-40T
Chain KMC X8 Chain
Brakes Aoyang Hydraulic Disc with 160mm Rotors
Brake Levers Aoyang 2.5 Finger
Handlebars 780mm W, 15mm Rise, ø31.8, 9° Back sweep, 5° Upsweep
Tape/Grips DDK TPR 130mm
Stem Alloy 3D forged 60mm Reach
Headset Neco 1-1/8" Threadless
Seatpost Alloy ø31.6 Micro adjust
Saddle DDK MTB
Pedals FPD Nylon Platform 9/16"

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Black / Small / 29-inch 691840152105 15210 210000052610
Matte Green / Small / 29-inch 691840152143 15214 210000052611
