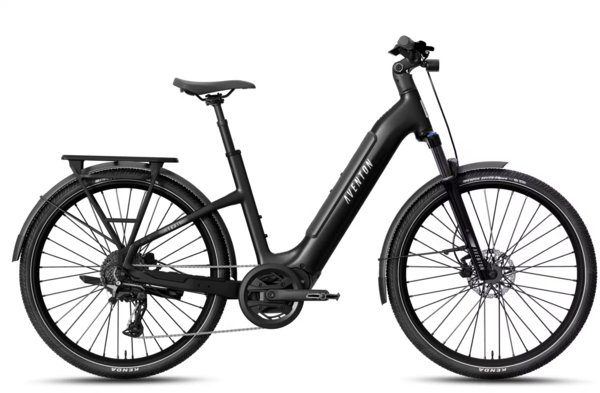

Aventon Level 4 ADV Step-Through Ebike
Details
Mid-drive performance meets reliable commuter capability.
The Level 4 ADV elevates the commuting experience with mid-drive performance and refined control. Powered by Aventon’s Ultro S motor with 100Nm of torque and paired with a Shimano CUES 10-speed drivetrain featuring Aventon’s E-Shifter and Autoshift technology, it delivers a natural pedaling feel and efficient power delivery across varied terrain. The ADV adds lightweight balance, responsive handling, and a premium feel, making it ideal for riders who want performance and sophistication without complexity. For those seeking the next level of connection, comfort, and control, the Level ADV represents the pinnacle of Aventon’s commuter design.
| Frame Size | Regular | Large |
|---|---|---|
| Seat Tube Length (mm) | 420 | 480 |
| Top Tube Length Horizontal (mm) | 609 | 637 |
| Bottom Bracket Drop (mm) | 65 | 65 |
| Head Tube Length (mm) | 120 | 130 |
| Head Tube Angle (degree) | 69° | 69° |
| Seat Tube Angle (degree) | 74° | 74° |
| Rear Chainstay Length (mm) | 480 | 480 |
| Front Wheel Center (mm) | 699 | 727 |
| Wheelbase (mm) | 1171 | 1200 |
| Reach (mm) | 425 | 450 |
| Stack Height (mm) | 642 | 652 |
| Fork Length (mm) | 515 | 515 |
| Fork Offset (mm) | 46 | 46 |
| Trail (mm) | 84.3 | 84.3 |
| Wheel Size (inch) | 27.5" | 27.5" |
| Standover Height (mm) | 417 | 417 |
| Rider Height (cm) | 161–175 cm | 176–185 cm |
| Rider Height (in) | 5'3" – 5'10" | 5'10" – 6'1" |
| Frame Size | Rider Height (in) | Rider Inseam (in) |
|---|---|---|
| Regular | 4'11" - 5'7" | 24" - 29" |
| Large | 5'7" - 6'1" | 29" - 33" |
This electric bicycle may exceed certain speed or power limits defined for e-bikes depending on local or state regulations. It is the rider’s responsibility to ensure compliance with all applicable laws and use restrictions before operating this bicycle.
Specs
| Frame | 6061 Aluminum |
|---|---|
| Fork | 100mm Suspension Fork, 15x100mm |
| Wheels | 27.5" Double Wall Aluminum, 36H |
| Tires | Kenda K1052, 27.5x2.2" |
| Crankset | 165mm ISIS Splined |
| Chainrings | 48T |
| Shifters | E-Shifter |
| Rear Derailleur | Shimano Cues 10-Speed |
| Cassette/Freewheel | Shimano Cues 10-Speed 11-39T |
| Chain | 9/10/11 speed 126L |
| Brakes |
Tektro HD-M3120 2-Piston Hydraulic Disc Brakes Hydraulic |
| Rotors | 180mm 6 bolt |
| Handlebars | 31.8mm, 680mm Width, 30mm Rise |
| Tape/Grips | Aventon Lock on grips |
| Seatpost | Aventon Suspension Post, 30.9mm, 50mm Travel, 400mm Length |
| Saddle | Aventon Saddle |
| Pedals | 9/16" Composite Platform |
| Accessories & Extras |
Throttle: Compatible but not included Smart Features: Uphill Start Assist, E-Shift, AutoShift, and Ride Tune Accessories: Front and rear lights integrated, rear rack, fenders |
| Motor | Aventon Ultro S |
| Battery | 800Wh |
| Controller/Display | A280 Center Display |
| Charger | 42V 4A charger |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Matte Black / Large / 27.5-inch | 810097177451 | 1E027-0034812 | 210000055835 |
| Haze / Large / 27.5-inch | 810097177468 | 1E027-0034813 | 210000055833 |
